View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0000373 | JVT JM H.264/AVC reference software | encoder | public | 2021-03-17 13:56 | 2021-03-17 13:56 |
| Reporter | Florian Maurer | Assigned To | |||
| Priority | normal | Severity | minor | Reproducibility | always |
| Status | new | Resolution | open | ||
| OS | Windows | OS Version | 20H2 | ||
| Summary | 0000373: Artefacts present on decoded sequence - Mismatch between encoder reconstruction & decoder | ||||

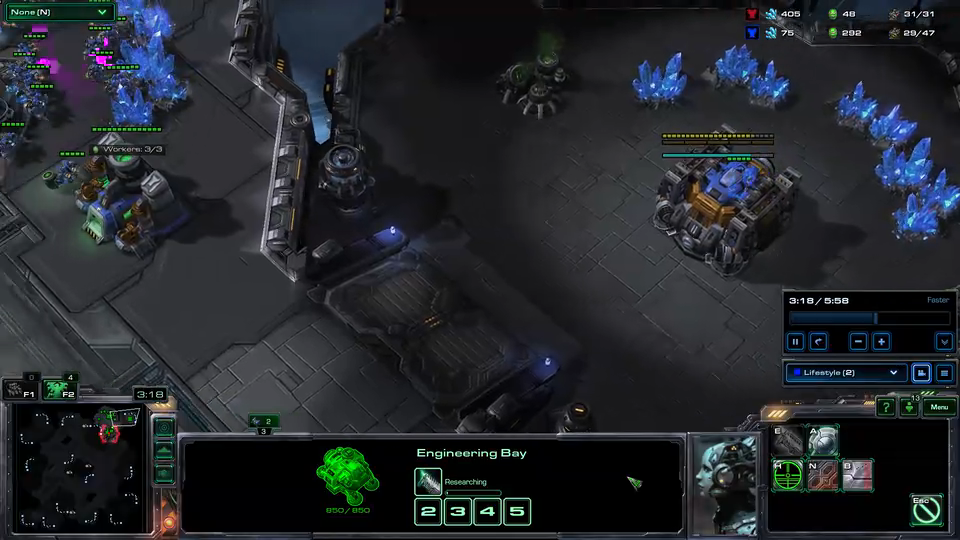

| Description | When encoding one specific operating point of the Starcraft sequence using JM 19.0, pink artefacts are present on the decoded sequence in the top left corner (see attached screenshot). These artefacts start with POC 137, then build up over time, and disappear again with POC 192. The artefacts are also present when using a different decoder than JM 19.0. However, the encoder reconstruction of JM does not show this issue. | ||||
| Steps To Reproduce | Command line: lencod.exe -f encoder_randomaccess.cfg -p InputFile="VL_Starcraft_540p60.yuv" -p OutputFile="VL_Starcraft_540p60_QP30.bin" -p ReconFile="VL_Starcraft_540p60_QP30.yuv" -p SourceWidth=960 -p SourceHeight=540 -p QPISlice=30 -p QPPSlice=31 -p QPBSlice=31 -p IntraPeriod=64 -p FramesToBeEncoded=600 -p TraceFile="trace.txt" The config files encoder_randomaccess.cfg and encoder.cfg are attached. The source file is available at (MPEG access required): ftp://mpegcontent@mpegfs.int-evry.fr/MPEG-05/Part02/VerificationTestPhase1Material/1_OriginalHalfRes/VL_Starcraft_540p60.yuv | ||||
| Additional Information | Feel free to contact me in case additional information are required. | ||||
| Tags | No tags attached. | ||||
|
|
encoder_randomaccess.cfg (49,422 bytes)
# New Input File Format is as follows
# <ParameterName> = <ParameterValue> # Comment
#
# See configfile.h for a list of supported ParameterNames
#
# For bug reporting and known issues see:
# https://ipbt.hhi.fraunhofer.de
##########################################################################################
# Files
##########################################################################################
InputFile = "D:\origCfP\BQSquare_416x240_60.yuv" # Input sequence
InputHeaderLength = 0 # If the inputfile has a header, state it's length in byte here
StartFrame = 0 # Start frame for encoding. (0-N)
FramesToBeEncoded = 30 # Number of frames to be coded
FrameRate = 60.0 # Frame Rate per second (0.1-100.0)
Enable32Pulldown = 0 # Enable 'hard' 3:2 pulldown (modifying the inpur data)
# 0 = disabled
# 1 = A, B, Bt|Cb, Ct|Db, D
# 2 = A, B, C, Ct|Db, D
SEIVUI32Pulldown = 0 # Enable 3:2 pulldown through VUI and SEI metadata signaling. Five methods are supported:
# 0 = disabled
# 1 = A, Bt|Bb, Bt|Cb, Ct|Cb, D
# 2 = A, B, C, C, D
# 3 = At|Ab, Bt|Bb, Bt|Cb, Ct|Cb, Dt|Db
# 4 = A, Bt|Bb, Bt|Cb, Ct|Db, Dt|Db
# 5 = At|Ab, Bt|Bb, Bt|Cb, Ct|Db, Dt|Db
SourceWidth = 416 # Source frame width
SourceHeight = 240 # Source frame height
SourceResize = 0 # Resize source size for output
OutputWidth = 416 # Output frame width
OutputHeight = 240 # Output frame height
ProcessInput = 0 # Filter Input Sequence
Interleaved = 0 # 0: Planar input, 1: Packed input
StandardRange = 0 # 0: Standard range 1: Full range (RGB input)
VideoCode = 1 # Video codes for RGB ==> YUV conversions
# 0 = NULL,
# 1 = ITU_REC709,
# 2 = CCIR_601,
# 3 = FCC,
# 4 = ITU_REC624BG,
# 5 = SMPTE_170M,
# 6 = SMPTE_240M,
# 7 = SMPTE_260M,
# 8 = ITU_REC709_EXACT
#TraceFile = "" # Trace file
ReconFile = "test_rec.yuv" # Reconstruction YUV file
OutputFile = "test.264" # Bitstream
StatsFile = "" # Coding statistics file
NumberOfViews = 1 # Number of views to encode (1=1 view, 2=2 views)
View1ConfigFile = "encoder_view1.cfg" # Config file name for second view
##########################################################################################
# Encoder Control
##########################################################################################
Grayscale = 0 # Encode in grayscale (Currently only works for 8 bit YUV 420 input)
ProfileIDC = 100 # Profile IDC (66=baseline, 77=main, 88=extended; FREXT Profiles: 100=High, 110=High 10, 122=High 4:2:2, 244=High 4:4:4, 44=CAVLC 4:4:4 Intra, 118=Multiview High Profile, 128=Stereo High Profile)
IntraProfile = 0 # Activate Intra Profile for FRExt (0: false, 1: true)
# (e.g. ProfileIDC=110, IntraProfile=1 => High 10 Intra Profile)
LevelIDC = 51 # Level IDC (e.g. 20 = level 2.0)
IntraPeriod = 0 # Period of I-pictures (0=only first)
IDRPeriod = 0 # Period of IDR pictures (0=only first)
AdaptiveIntraPeriod = 0 # Adaptive intra period
AdaptiveIDRPeriod = 0 # Adaptive IDR period
IntraDelay = 0 # Intra (IDR) picture delay (i.e. coding structure of PPIPPP... )
EnableIDRGOP = 0 # Support for IDR closed GOPs (0: disabled, 1: enabled)
EnableOpenGOP = 0 # Support for open GOPs (0: disabled, 1: enabled)
QPISlice = 32 # Quant. param for I Slices (0-51)
QPPSlice = 33 # Quant. param for P Slices (0-51)
FrameSkip = 0 # Number of frames to be skipped in input (e.g 2 will code every third frame).
# Note that this now excludes intermediate (i.e. B) coded pictures
ChromaQPOffset = 0 # Chroma QP offset (-51..51)
DisableSubpelME = 0 # Disable Subpixel Motion Estimation (0=off/default, 1=on)
SearchRange = 128 # Max search range
MEDistortionFPel = 0 # Select error metric for Full-Pel ME (0: SAD, 1: SSE, 2: Hadamard SAD)
MEDistortionHPel = 2 # Select error metric for Half-Pel ME (0: SAD, 1: SSE, 2: Hadamard SAD)
MEDistortionQPel = 2 # Select error metric for Quarter-Pel ME (0: SAD, 1: SSE, 2: Hadamard SAD)
MDDistortion = 2 # Select error metric for Mode Decision (0: SAD, 1: SSE, 2: Hadamard SAD)
SkipDeBlockNonRef = 0 # Skip Deblocking (regardless of DFParametersFlag) for non-reference frames (0: off, 1: on)
ChromaMCBuffer = 1 # Calculate Color component interpolated values in advance and store them.
# Provides a trade-off between memory and computational complexity
# (0: disabled/default, 1: enabled)
ChromaMEEnable = 0 # Take into account Color component information during ME
# (0: only first component/default,
# 1: All Color components - Integer refinement only
# 2: All Color components - All refinements)
ChromaMEWeight = 1 # Weighting for chroma components. This parameter should have a relationship with color format.
NumberReferenceFrames = 4 # Number of previous frames used for inter motion search (0-16)
PList0References = 4 # P slice List 0 reference override (0 disable, N <= NumberReferenceFrames)
Log2MaxFNumMinus4 = 0 # Sets log2_max_frame_num_minus4 (-1 : based on FramesToBeEncoded/Auto, >=0 : Log2MaxFNumMinus4)
Log2MaxPOCLsbMinus4 = -1 # Sets log2_max_pic_order_cnt_lsb_minus4 (-1 : Auto, >=0 : Log2MaxPOCLsbMinus4)
GenerateMultiplePPS = 1 # Transmit multiple parameter sets. Currently parameters basically enable all WP modes (0: diabled, 1: enabled)
SendAUD = 1 # Send Access Delimiter Unit NALU (for every access unit)
ResendSPS = 0 # Resend SPS (0: disabled, 1: all Intra pictures, 2: only for IDR, 3: for IDR and OpenGOP I)
ResendPPS = 0 # Resend PPS (with pic_parameter_set_id 0) for every coded Frame/Field pair (0: disabled, 1: enabled)
MbLineIntraUpdate = 0 # Error robustness(extra intra macro block updates)(0=off, N: One GOB every N frames are intra coded)
RandomIntraMBRefresh = 0 # Forced intra MBs per picture
##########################################################################################
# PSlice Mode types
##########################################################################################
PSliceSkip = 1 # P-Slice Skip mode consideration (0=disable, 1=enable)
PSliceSearch16x16 = 1 # P-Slice Inter block search 16x16 (0=disable, 1=enable)
PSliceSearch16x8 = 1 # P-Slice Inter block search 16x8 (0=disable, 1=enable)
PSliceSearch8x16 = 1 # P-Slice Inter block search 8x16 (0=disable, 1=enable)
PSliceSearch8x8 = 1 # P-Slice Inter block search 8x8 (0=disable, 1=enable)
PSliceSearch8x4 = 1 # P-Slice Inter block search 8x4 (0=disable, 1=enable)
PSliceSearch4x8 = 1 # P-Slice Inter block search 4x8 (0=disable, 1=enable)
PSliceSearch4x4 = 1 # P-Slice Inter block search 4x4 (0=disable, 1=enable)
##########################################################################################
# BSlice Mode types
##########################################################################################
BSliceDirect = 1 # B-Slice Skip mode consideration (0=disable, 1=enable)
BSliceSearch16x16 = 1 # B-Slice Inter block search 16x16 (0=disable, 1=enable)
BSliceSearch16x8 = 1 # B-Slice Inter block search 16x8 (0=disable, 1=enable)
BSliceSearch8x16 = 1 # B-Slice Inter block search 8x16 (0=disable, 1=enable)
BSliceSearch8x8 = 1 # B-Slice Inter block search 8x8 (0=disable, 1=enable)
BSliceSearch8x4 = 1 # B-Slice Inter block search 8x4 (0=disable, 1=enable)
BSliceSearch4x8 = 1 # B-Slice Inter block search 4x8 (0=disable, 1=enable)
BSliceSearch4x4 = 1 # B-Slice Inter block search 4x4 (0=disable, 1=enable)
BiPredSearch16x16 = 1 # B-Slice Bi-prediction block search 16x16 (0=disable, 1=enable)
BiPredSearch16x8 = 1 # B-Slice Bi-prediction block search 16x8 (0=disable, 1=enable)
BiPredSearch8x16 = 1 # B-Slice Bi-prediction block search 8x16 (0=disable, 1=enable)
BiPredSearch8x8 = 1 # B-Slice Bi-prediction block search 8x8 (0=disable, 1=enable)
DisableIntra4x4 = 0 # Disable Intra 4x4 modes
DisableIntra16x16 = 0 # Disable Intra 16x16 modes
DisableIntraInInter = 0 # Disable Intra modes for inter slices
IntraDisableInterOnly = 0 # Apply Disabling Intra conditions only to Inter Slices (0:disable/default,1: enable)
Intra4x4ParDisable = 0 # Disable Vertical & Horizontal 4x4
Intra4x4DiagDisable = 0 # Disable Diagonal 45degree 4x4
Intra4x4DirDisable = 0 # Disable Other Diagonal 4x4
Intra16x16ParDisable = 0 # Disable Vertical & Horizontal 16x16
Intra16x16PlaneDisable = 0 # Disable Planar 16x16
ChromaIntraDisable = 0 # Disable Intra Chroma modes other than DC
EnableIPCM = 1 # Enable IPCM macroblock mode
DisposableP = 0 # Enable Disposable P slices in the primary layer (0: disable/default, 1: enable)
DispPQPOffset = 0 # Quantizer offset for disposable P slices (0: default)
PreferDispOrder = 1 # Prefer display order when building the prediction structure as opposed to coding order (affects intra and IDR periodic insertion, among others)
PreferPowerOfTwo = 0 # Prefer prediction structures that have lengths expressed as powers of two
FrmStructBufferLength = 16 # Length of the frame structure unit buffer; it can be overriden for certain cases
ChangeQPFrame = 0 # Frame in display order from which to apply the Change QP offsets
ChangeQPI = 0 # Change QP offset value for I_SLICE
ChangeQPP = 0 # Change QP offset value for P_SLICE
ChangeQPB = 0 # Change QP offset value for B_SLICE
ChangeQPSI = 0 # Change QP offset value for SI_SLICE
ChangeQPSP = 0 # Change QP offset value for SP_SLICE
##########################################################################################
# B Slices
##########################################################################################
NumberBFrames = 7 # Number of B coded frames inserted (0=not used)
PReplaceBSlice = 0 # Replace B-coded slices with P-coded slices when NumberBFrames>0
QPBSlice = 33 # Quant. param for B slices (0-51)
BRefPicQPOffset = 0 # Quantization offset for reference B coded pictures (-51..51)
DirectModeType = 1 # Direct Mode Type (0:Temporal 1:Spatial)
DirectInferenceFlag = 1 # Direct Inference Flag (0: Disable 1: Enable)
BList0References = 2 # B slice List 0 reference override (0 disable, N <= NumberReferenceFrames)
BList1References = 2 # B slice List 1 reference override (0 disable, N <= NumberReferenceFrames)
# 1 List1 reference is usually recommended for normal GOP Structures.
# A larger value is usually more appropriate if a more flexible
# structure is used (i.e. using HierarchicalCoding)
BLevel0MoreRef = 1 # 0: Use the same number of reference pictures as the other B pictures
# 1: Use more reference frame pictures for B pictures at level 0
BIdenticalList = 1 # 0: not used; 1: used for B pictures at level 0; 2: used for all B pictures
# 1 and 2 need to set ReferenceReorder to 1
CRA = 1 # 0: do not use CRA like random access support; 1 use CRA like random access support
# only used for random access cases, LowDelay != 1
HM50RefStructure = 1 # 0: do not use HM-5.0 like referencing structure; 1 use HM-5.0 like referencing structure for random access
LDRefSetting = 0 # 0: use nearest pictures as reference frames
# 1: use one nearest + POC%4==0 pictures as reference frames, as JCTVC-F701
# Only low delay is support, please do not use it for other coding structure
BReferencePictures = 2 # Referenced B coded pictures (0=off, 1=B references for secondary layer, 2=B references for primary layer)
HierarchicalCoding = 3 # B hierarchical coding (0= off, 1= 2 layers, 2= 2 full hierarchy, 3 = explicit)
HierarchyLevelQPEnable = 0 # Adjust QP based on hierarchy level (in increments of 1). Overrides BRefPicQPOffset behavior.(0=off, 1=on)
ExplicitHierarchyFormat = "B3r1B1r2b0e3b2e3B5r2b4e3b6e3" # Explicit Enhancement GOP. Format is {FrameDisplay_orderReferenceQP}.
# Valid values for reference type is r:reference, e:non reference.
ExplicitSeqCoding = 0 # Enable support for explicit sequence coding
ExplicitSeqFile = "explicit_seq.cfg"
LowDelay = 0 # Apply HierarchicalCoding without delay (i.e., encode in the captured/display order)
ReferenceReorder = 1 # Reorder References according to Poc distance for HierarchicalCoding (0=off, 1=enable, 2=use when LowDelay is set)
PocMemoryManagement = 0 # Memory management based on Poc Distances for HierarchicalCoding (0=off, 1=on, 2=use when LowDelay is set)
SetFirstAsLongTerm = 0 # Set first frame as long term
BiPredMotionEstimation = 1 # Enable Bipredictive based Motion Estimation (0:disabled, 1:enabled)
BiPredMERefinements = 3 # Bipredictive ME extra refinements (0: single, N: N extra refinements (1 default)
BiPredMESearchRange = 128 # Bipredictive ME Search range (8 default). Note that range is halved for every extra refinement.
BiPredMESubPel = 2 # Bipredictive ME Subpixel Consideration (0: disabled, 1: single level, 2: dual level)
##########################################################################################
# SP Frames
##########################################################################################
SPPicturePeriodicity = 0 # SP-Picture Periodicity (0=not used)
SPSwitchPeriod = 0 # Switch period (in terms of switching SP/SI frames) between bitstream 1 and bitstream 2
QPSPSlice = 36 # Quant. param of SP-Slices for Prediction Error (0-51)
QPSISlice = 36 # Quant. param of SI-Slices for Prediction Error (0-51)
QPSP2Slice = 35 # Quant. param of SP/SI-Slices for Predicted Blocks (0-51)
SI_FRAMES = 0 # SI frame encoding flag (0=not used, 1=used)
SP_output = 0 # Controls whether coefficients will be output to encode switching SP frames (0=no, 1=yes)
SP_output_name = "low_quality.dat" # Filename for SP output coefficients
SP2_FRAMES = 0 # switching SP frame encoding flag (0=not used, 1=used)
SP2_input_name1 = "high_quality.dat" # Filename for the first swithed bitstream coefficients
SP2_input_name2 = "low_quality.dat" # Filename for the second switched bitstream coefficients
##########################################################################################
# Output Control, NALs
##########################################################################################
SymbolMode = 1 # Symbol mode (Entropy coding method: 0=UVLC, 1=CABAC)
OutFileMode = 0 # Output file mode, 0:Annex B, 1:RTP
PartitionMode = 0 # Partition Mode, 0: no DP, 1: 3 Partitions per Slice
##########################################################################################
# CABAC context initialization
##########################################################################################
ContextInitMethod = 1 # Context init (0: fixed, 1: adaptive)
FixedModelNumber = 0 # model number for fixed decision for inter slices ( 0, 1, or 2 )
##########################################################################################
# Interlace Handling
#########################################################################################
PicInterlace = 0 # Picture AFF (0: frame coding, 1: field coding, 2:adaptive frame/field coding)
MbInterlace = 0 # Macroblock AFF (0: frame coding, 1: field coding, 2:adaptive frame/field coding, 3: frame MB-only AFF)
IntraBottom = 0 # Force Intra Bottom at GOP Period
##########################################################################################
# Weighted Prediction
#########################################################################################
WeightedPrediction = 1 # P picture Weighted Prediction (0=off, 1=explicit mode)
WeightedBiprediction = 1 # B picture Weighted Prediciton (0=off, 1=explicit mode, 2=implicit mode)
ChromaWeightSupport = 1 # Enable consideration of weights for Chroma components
UseWeightedReferenceME = 1 # Use weighted reference for ME (0=off, 1=on)
WPMethod = 1 # WP method (0: DC based, 1: LMS based)
WPIterMC = 0 # Iterative Motion compensated based weighted prediction method
EnhancedBWeightSupport = 0 # Enhanced B Weight support (needs revisit if we wish to merge with WPMethod)
WPMCPrecision = 0 # Improved Motion Compensation Precision using WP based methods.
# Clones WP references with slightly modified rounding offsets (Requires RDPictureDecision and GenerateMultiplePPS) :
# 0: disabled (default)
# 1: Up to one additional coding pass. Ref0 is 0, ref1 is 0 with a -1 offset
# 2: Up to two additional coding passes. (1) Ref0 is 0, ref1 is 0 with a -1 offset, (1) Ref0 is 0 with a -1 offset, ref1 is 0
WPMCPrecFullRef = 0 # Increases the number of references in the reference picture lists to account
# for the lost reference slot when reordering is used during a coding pass in WPMCPrecision for reference replication.
# The number of references in non-reordered passes stays unchanged
WPMCPrecBSlice = 1 # 2: Apply rounding on every B slice. This efectively disables the evaluation of alternative QPs during RDPictureDecision.
# 1: Disable rounding for non-reference B slices. Non-reference B slices are evaluated for alternative QPs during RDPictureDecision.
# 0: Disable rounding for B slices.
##########################################################################################
# Picture based Multi-pass encoding
#########################################################################################
RDPictureDecision = 1 # Perform multiple pass coding and make RD optimal decision among them
RDPSliceBTest = 0 # Perform Slice level RD decision between P and B slices.
RDPSliceITest = 1 # Perform Slice level RD decision between P and I slices. Default value is 1 (enabled).
RDPictureMaxPassISlice = 1 # Max number of coding passes for I slices, valid values [1,3], default is 1
RDPictureMaxPassPSlice = 2 # Max number of coding passes for P slices, valid values [1,6], default is 2
RDPictureMaxPassBSlice = 3 # Max number of coding passes for B slices, valid values [1,6], default is 3
RDPictureFrameQPPSlice = 0 # Perform additional frame level QP check (QP+/-1) for P slices, 0: disabled (default), 1: enabled
RDPictureFrameQPBSlice = 0 # Perform additional frame level QP check (QP+/-1) for B slices, 0: disabled, 1: enabled (default)
RDPictureDeblocking = 0 # Perform another coding pass to check non-deblocked picture, 0: disabled (default), 1: enabled
RDPictureDirectMode = 0 # Perform another coding pass to check the alternative direct mode for B slices, , 0: disabled (default), 1: enabled
##########################################################################################
# Deblocking filter parameters
##########################################################################################
DFParametersFlag = 0 # Configure deblocking filter (0=parameters below ignored, 1=parameters sent)
# Note that for pictures with multiple slice types,
# only the type of the first slice will be considered.
DFDisableRefISlice = 0 # Disable deblocking filter in reference I coded pictures (0=Filter, 1=No Filter).
DFAlphaRefISlice = 0 # Reference I coded pictures Alpha offset div. 2, {-6, -5, ... 0, +1, .. +6}
DFBetaRefISlice = 0 # Reference I coded pictures Beta offset div. 2, {-6, -5, ... 0, +1, .. +6}
DFDisableNRefISlice = 0 # Disable deblocking filter in non reference I coded pictures (0=Filter, 1=No Filter).
DFAlphaNRefISlice = 0 # Non Reference I coded pictures Alpha offset div. 2, {-6, -5, ... 0, +1, .. +6}
DFBetaNRefISlice = 0 # Non Reference I coded pictures Beta offset div. 2, {-6, -5, ... 0, +1, .. +6}
DFDisableRefPSlice = 0 # Disable deblocking filter in reference P coded pictures (0=Filter, 1=No Filter).
DFAlphaRefPSlice = 0 # Reference P coded pictures Alpha offset div. 2, {-6, -5, ... 0, +1, .. +6}
DFBetaRefPSlice = 0 # Reference P coded pictures Beta offset div. 2, {-6, -5, ... 0, +1, .. +6}
DFDisableNRefPSlice = 0 # Disable deblocking filter in non reference P coded pictures (0=Filter, 1=No Filter).
DFAlphaNRefPSlice = 0 # Non Reference P coded pictures Alpha offset div. 2, {-6, -5, ... 0, +1, .. +6}
DFBetaNRefPSlice = 0 # Non Reference P coded pictures Beta offset div. 2, {-6, -5, ... 0, +1, .. +6}
DFDisableRefBSlice = 0 # Disable deblocking filter in reference B coded pictures (0=Filter, 1=No Filter).
DFAlphaRefBSlice = 0 # Reference B coded pictures Alpha offset div. 2, {-6, -5, ... 0, +1, .. +6}
DFBetaRefBSlice = 0 # Reference B coded pictures Beta offset div. 2, {-6, -5, ... 0, +1, .. +6}
DFDisableNRefBSlice = 0 # Disable deblocking filter in non reference B coded pictures (0=Filter, 1=No Filter).
DFAlphaNRefBSlice = 0 # Non Reference B coded pictures Alpha offset div. 2, {-6, -5, ... 0, +1, .. +6}
DFBetaNRefBSlice = 0 # Non Reference B coded pictures Beta offset div. 2, {-6, -5, ... 0, +1, .. +6}
##########################################################################################
# Error Resilience / Slices
##########################################################################################
SliceMode = 0 # Slice mode (0=off 1=fixed #mb in slice 2=fixed #bytes in slice 3=use callback)
SliceArgument = 50 # Slice argument (Arguments to modes 1 and 2 above)
num_slice_groups_minus1 = 0 # Number of Slice Groups Minus 1, 0 == no FMO, 1 == two slice groups, etc.
slice_group_map_type = 0 # 0: Interleave, 1: Dispersed, 2: Foreground with left-over,
# 3: Box-out, 4: Raster Scan 5: Wipe
# 6: Explicit, slice_group_id read from SliceGroupConfigFileName
slice_group_change_direction_flag = 0 # 0: box-out clockwise, raster scan or wipe right,
# 1: box-out counter clockwise, reverse raster scan or wipe left
slice_group_change_rate_minus1 = 85 #
SliceGroupConfigFileName = "sg0conf.cfg" # Used for slice_group_map_type 0, 2, 6
UseRedundantPicture = 0 # 0: not used, 1: enabled
NumRedundantHierarchy = 1 # 0-4
PrimaryGOPLength = 10 # GOP length for redundant allocation (1-16)
# NumberReferenceFrames must be no less than PrimaryGOPLength when redundant slice enabled
NumRefPrimary = 1 # Actually used number of references for primary slices (1-16)
##########################################################################################
# Search Range Restriction / RD Optimization
##########################################################################################
RestrictSearchRange = 2 # restriction for (0: blocks and ref, 1: ref, 2: no restrictions)
RDOptimization = 1 # rd-optimized mode decision
# 0: RD-off (Low complexity mode)
# 1: RD-on (High complexity mode)
# 2: RD-on (Fast high complexity mode - not work in FREX Profiles)
# 3: with losses
I16RDOpt = 1 # perform rd-optimized mode decision for Intra 16x16 MB
# 0: SAD-based mode decision for Intra 16x16 MB
# 1: RD-based mode decision for Intra 16x16 MB
SubMBCodingState = 2 # submacroblock coding state
# 0: lowest complexity, do not store or reset coding state during sub-MB mode decision
# 1: medium complexity, reset to master coding state (for current mode) during sub-MB mode decision
# 2: highest complexity, store and reset coding state during sub-MB mode decision
DistortionSSIM = 0 # Compute SSIM distortion. (0: disabled/default, 1: enabled)
DistortionMS_SSIM = 0 # Compute Multiscale SSIM distortion. (0: disabled/default, 1: enabled)
SSIMOverlapSize = 8 # Overlap size to calculate SSIM distortion (1: pixel by pixel, 8: no overlap)
DistortionYUVtoRGB = 0 # Calculate distortion in RGB domain after conversion from YCbCr (0:off, 1:on)
CtxAdptLagrangeMult = 0 # Context Adaptive Lagrange Multiplier
# 0: disabled (default)
# 1: enabled (works best when RDOptimization=0)
FastCrIntraDecision = 1 # Fast Chroma intra mode decision (0:off, 1:on)
DisableThresholding = 0 # Disable Thresholding of Transform Coefficients (0:off, 1:on)
DisableBSkipRDO = 0 # Disable B Skip Mode consideration from RDO Mode decision (0:off, 1:on)
BiasSkipRDO = 0 # Negative Bias for Skip/DirectSkip modes (0: off, 1: on)
ForceTrueRateRDO = 0 # Force true rate (even zero values) during RDO process
SkipIntraInInterSlices = 0 # Skips Intra mode checking in inter slices if certain mode decisions are satisfied (0: off, 1: on)
WeightY = 1 # Luma weight for RDO
WeightCb = 1 # Cb weight for RDO
WeightCr = 1 # Cr weight for RDO
##########################################################################################
# Explicit Lambda Usage
##########################################################################################
UseExplicitLambdaParams = 0 # Use explicit lambda scaling parameters (0:disabled, 1:enable lambda weight, 2: use explicit lambda value)
UpdateLambdaChromaME = 0 # Update lambda given Chroma ME consideration
FixedLambdaISlice = 0.1 # Fixed Lambda value for I slices
FixedLambdaPSlice = 0.1 # Fixed Lambda value for P slices
FixedLambdaBSlice = 0.1 # Fixed Lambda value for B slices
FixedLambdaRefBSlice = 0.1 # Fixed Lambda value for Referenced B slices
FixedLambdaSPSlice = 0.1 # Fixed Lambda value for SP slices
FixedLambdaSISlice = 0.1 # Fixed Lambda value for SI slices
LambdaWeightISlice = 0.65 # scaling param for I slices. This will be used as a multiplier i.e. lambda=LambdaWeightISlice * 2^((QP-12)/3)
LambdaWeightPSlice = 0.68 # scaling param for P slices. This will be used as a multiplier i.e. lambda=LambdaWeightPSlice * 2^((QP-12)/3)
LambdaWeightBSlice = 0.68 # scaling param for B slices. This will be used as a multiplier i.e. lambda=LambdaWeightBSlice * 2^((QP-12)/3)
LambdaWeightRefBSlice = 0.68 # scaling param for Referenced B slices. This will be used as a multiplier i.e. lambda=LambdaWeightRefBSlice * 2^((QP-12)/3)
LambdaWeightSPSlice = 0.68 # scaling param for SP slices. This will be used as a multiplier i.e. lambda=LambdaWeightSPSlice * 2^((QP-12)/3)
LambdaWeightSISlice = 0.65 # scaling param for SI slices. This will be used as a multiplier i.e. lambda=LambdaWeightSISlice * 2^((QP-12)/3)
LossRateA = 5 # expected packet loss rate of the channel for the first partition, only valid if RDOptimization = 3
LossRateB = 0 # expected packet loss rate of the channel for the second partition, only valid if RDOptimization = 3
LossRateC = 0 # expected packet loss rate of the channel for the third partition, only valid if RDOptimization = 3
FirstFrameCorrect = 0 # If 1, the first frame is encoded under the assumption that it is always correctly received.
NumberOfDecoders = 30 # Numbers of decoders used to simulate the channel, only valid if RDOptimization = 3
RestrictRefFrames = 0 # Doesnt allow reference to areas that have been intra updated in a later frame.
##########################################################################################
# Additional Stuff
#########################################################################################
UseConstrainedIntraPred = 0 # If 1, Inter pixels are not used for Intra macroblock prediction.
NumberofLeakyBuckets = 8 # Number of Leaky Bucket values
LeakyBucketRateFile = "leakybucketrate.cfg" # File from which encoder derives rate values
LeakyBucketParamFile = "leakybucketparam.cfg" # File where encoder stores leakybucketparams
NumFramesInELayerSubSeq = 0 # number of frames in the Enhanced Scalability Layer(0: no Enhanced Layer)
SparePictureOption = 0 # (0: no spare picture info, 1: spare picture available)
SparePictureDetectionThr = 6 # Threshold for spare reference pictures detection
SparePicturePercentageThr = 92 # Threshold for the spare macroblock percentage
PicOrderCntType = 0 # (0: POC mode 0, 1: POC mode 1, 2: POC mode 2)
########################################################################################
#Rate control
########################################################################################
RateControlEnable = 0 # 0 Disable, 1 Enable
Bitrate = 45020 # Bitrate(bps)
InitialQP = 0 # Initial Quantization Parameter for the first I frame
# InitialQp depends on two values: Bits Per Picture,
# and the GOP length
BasicUnit = 0 # Number of MBs in the basic unit
# should be a fraction of the total number
# of MBs in a frame ("0" sets a BU equal to a frame)
ChannelType = 0 # type of channel( 1=time varying channel; 0=Constant channel)
RCUpdateMode = 0 # Rate Control type. Modes supported :
# 0 = original JM rate control,
# 1 = rate control that is applied to all frames regardless of the slice type,
# 2 = original plus intelligent QP selection for I and B slices (including Hierarchical),
# 3 = original + hybrid quadratic rate control for I and B slice using bit rate statistics
#
RCISliceBitRatio = 1.0 # target ratio of bits for I-coded pictures compared to P-coded Pictures (for RCUpdateMode=3)
RCBSliceBitRatio0 = 0.5 # target ratio of bits for B-coded pictures compared to P-coded Pictures - temporal level 0 (for RCUpdateMode=3)
RCBSliceBitRatio1 = 0.25 # target ratio of bits for B-coded pictures compared to P-coded Pictures - temporal level 1 (for RCUpdateMode=3)
RCBSliceBitRatio2 = 0.25 # target ratio of bits for B-coded pictures compared to P-coded Pictures - temporal level 2 (for RCUpdateMode=3)
RCBSliceBitRatio3 = 0.25 # target ratio of bits for B-coded pictures compared to P-coded Pictures - temporal level 3 (for RCUpdateMode=3)
RCBSliceBitRatio4 = 0.25 # target ratio of bits for B-coded pictures compared to P-coded Pictures - temporal level 4 (for RCUpdateMode=3)
RCBoverPRatio = 0.45 # ratio of bit rate usage of a B-coded picture over a P-coded picture for the SAME QP (for RCUpdateMode=3)
RCIoverPRatio = 3.80 # ratio of bit rate usage of an I-coded picture over a P-coded picture for the SAME QP (for RCUpdateMode=3)
RCMinQPPSlice = 8 # minimum P Slice QP value for rate control
RCMaxQPPSlice = 42 # maximum P Slice QP value for rate control
RCMinQPBSlice = 8 # minimum B Slice QP value for rate control
RCMaxQPBSlice = 42 # maximum B Slice QP value for rate control
RCMinQPISlice = 8 # minimum I Slice QP value for rate control
RCMaxQPISlice = 42 # maximum I Slice QP value for rate control
RCMinQPSPSlice = 8 # minimum SP Slice QP value for rate control
RCMaxQPSPSlice = 40 # maximum SP Slice QP value for rate control
RCMinQPSISlice = 8 # minimum SI Slice QP value for rate control
RCMaxQPSISlice = 42 # maximum SI Slice QP value for rate control
RCMaxQPChange = 4 # maximum QP change for frames of the base layer
########################################################################################
#Fast Mode Decision
########################################################################################
EarlySkipEnable = 1 # Early skip detection (0: Disable 1: Enable)
SelectiveIntraEnable = 1 # Selective Intra mode decision (0: Disable 1: Enable)
########################################################################################
#FREXT stuff
########################################################################################
YUVFormat = 1 # YUV format (0=4:0:0, 1=4:2:0, 2=4:2:2, 3=4:4:4)
RGBInput = 0 # 1=RGB input, 0=GBR or YUV input
SeparateColourPlane = 0 # 4:4:4 coding: 0=Common mode, 1=Independent mode
SourceBitDepthLuma = 8 # Source Bit Depth for Luma color component (8...14 bits)
SourceBitDepthChroma = 8 # Source Bit Depth for Chroma color components (8...14 bits)
SourceBitDepthRescale = 1 # Rescale bit depth of source for output (0: Disable 1: Enable)
OutputBitDepthLuma = 8 # Output Bit Depth for Luma color component (8...14 bits)
OutputBitDepthChroma = 8 # Output Bit Depth for Chroma color components (8...14 bits)
CbQPOffset = 0 # Chroma QP offset for Cb-part (-51..51)
CrQPOffset = 0 # Chroma QP offset for Cr-part (-51..51)
Transform8x8Mode = 1 # (0: only 4x4 transform, 1: allow using 8x8 transform additionally, 2: only 8x8 transform)
ReportFrameStats = 0 # (0:Disable Frame Statistics 1: Enable)
DisplayEncParams = 0 # (0:Disable Display of Encoder Params 1: Enable)
Verbose = 1 # level of display verboseness
# 0: short, 1: normal (default), 2: detailed, 3: detailed/nvb
SkipGlobalStats = 0 # Disable global stat accumulation (Set to 1 to avoid bipred core dump)
########################################################################################
#Q-Matrix (FREXT)
########################################################################################
QmatrixFile = "q_matrix.cfg"
ScalingMatrixPresentFlag = 0 # Enable Q_Matrix (0 Not present, 1 Present in SPS, 2 Present in PPS, 3 Present in both SPS & PPS)
ScalingListPresentFlag0 = 3 # Intra4x4_Luma (0 Not present, 1 Present in SPS, 2 Present in PPS, 3 Present in both SPS & PPS)
ScalingListPresentFlag1 = 3 # Intra4x4_ChromaU (0 Not present, 1 Present in SPS, 2 Present in PPS, 3 Present in both SPS & PPS)
ScalingListPresentFlag2 = 3 # Intra4x4_chromaV (0 Not present, 1 Present in SPS, 2 Present in PPS, 3 Present in both SPS & PPS)
ScalingListPresentFlag3 = 3 # Inter4x4_Luma (0 Not present, 1 Present in SPS, 2 Present in PPS, 3 Present in both SPS & PPS)
ScalingListPresentFlag4 = 3 # Inter4x4_ChromaU (0 Not present, 1 Present in SPS, 2 Present in PPS, 3 Present in both SPS & PPS)
ScalingListPresentFlag5 = 3 # Inter4x4_ChromaV (0 Not present, 1 Present in SPS, 2 Present in PPS, 3 Present in both SPS & PPS)
ScalingListPresentFlag6 = 3 # Intra8x8_Luma (0 Not present, 1 Present in SPS, 2 Present in PPS, 3 Present in both SPS & PPS)
ScalingListPresentFlag7 = 3 # Inter8x8_Luma (0 Not present, 1 Present in SPS, 2 Present in PPS, 3 Present in both SPS & PPS)
ScalingListPresentFlag8 = 3 # Intra8x8_ChromaU for 4:4:4 (0 Not present, 1 Present in SPS, 2 Present in PPS, 3 Present in both SPS & PPS)
ScalingListPresentFlag9 = 3 # Inter8x8_ChromaU for 4:4:4 (0 Not present, 1 Present in SPS, 2 Present in PPS, 3 Present in both SPS & PPS)
ScalingListPresentFlag10 = 3 # Intra8x8_ChromaV for 4:4:4 (0 Not present, 1 Present in SPS, 2 Present in PPS, 3 Present in both SPS & PPS)
ScalingListPresentFlag11 = 3 # Inter8x8_ChromaV for 4:4:4 (0 Not present, 1 Present in SPS, 2 Present in PPS, 3 Present in both SPS & PPS)
########################################################################################
#Rounding Offset control
########################################################################################
OffsetMatrixPresentFlag = 0 # Enable Explicit Offset Quantization Matrices (0: disable 1: enable)
QOffsetMatrixFile = "q_offset.cfg" # Explicit Quantization Matrices file
AdaptiveRounding = 0 # Enable Adaptive Rounding based on JVT-N011 (0: disable, 1: enable)
AdaptRoundingFixed = 0 # Enable Global Adaptive rounding for all qps (0: disable, 1: enable - default/old)
AdaptRndPeriod = 1 # Period in terms of MBs for updating rounding offsets.
# 0 performs update at the picture level. Default is 16. 1 is as in JVT-N011.
AdaptRndChroma = 1 # Enables coefficient rounding adaptation for chroma
AdaptRndWFactorIRef = 8 # Adaptive Rounding Weight for I/SI slices in reference pictures /4096
AdaptRndWFactorPRef = 8 # Adaptive Rounding Weight for P/SP slices in reference pictures /4096
AdaptRndWFactorBRef = 8 # Adaptive Rounding Weight for B slices in reference pictures /4096
AdaptRndWFactorINRef = 8 # Adaptive Rounding Weight for I/SI slices in non reference pictures /4096
AdaptRndWFactorPNRef = 8 # Adaptive Rounding Weight for P/SP slices in non reference pictures /4096
AdaptRndWFactorBNRef = 8 # Adaptive Rounding Weight for B slices in non reference pictures /4096
AdaptRndCrWFactorIRef = 8 # Chroma Adaptive Rounding Weight for I/SI slices in reference pictures /4096
AdaptRndCrWFactorPRef = 8 # Chroma Adaptive Rounding Weight for P/SP slices in reference pictures /4096
AdaptRndCrWFactorBRef = 8 # Chroma Adaptive Rounding Weight for B slices in reference pictures /4096
AdaptRndCrWFactorINRef = 8 # Chroma Adaptive Rounding Weight for I/SI slices in non reference pictures /4096
AdaptRndCrWFactorPNRef = 8 # Chroma Adaptive Rounding Weight for P/SP slices in non reference pictures /4096
AdaptRndCrWFactorBNRef = 8 # Chroma Adaptive Rounding Weight for B slices in non reference pictures /4096
################################################################
# Rate Distortion Optimized Quantization
################################################################
UseRDOQuant = 1 # Use Rate Distortion Optimized Quantization (0=disable, 1=enable)
RDOQ_DC = 1 # Enable Rate Distortion Optimized Quantization for DC components (0=disable, 1=enable)
RDOQ_CR = 1 # Enable Rate Distortion Optimized Quantization for Chroma components (0=disable, 1=enable)
RDOQ_DC_CR = 1 # Enable Rate Distortion Optimized Quantization for Chroma DC components (0=disable, 1=enable)
RDOQ_QP_Num = 1 # 1-9: Number of QP tested in RDO_Q (I/P/B slice)
RDOQ_CP_Mode = 0 # copy Mode from first QP tested
RDOQ_CP_MV = 0 # copy MV from first QP tested
RDOQ_Fast = 1 # Fast RDOQ decision method for multiple QPs
########################################################################################
#Lossless Coding (FREXT)
########################################################################################
LosslessCoding = 0 # Enable lossless coding when qpprime_y is zero (0 Disabled, 1 Enabled)
########################################################################################
#Fast Motion Estimation Control Parameters
########################################################################################
SearchMode = 3 # Motion estimation mode
# -1 = Full Search
# 0 = Fast Full Search (default)
# 1 = UMHexagon Search
# 2 = Simplified UMHexagon Search
# 3 = Enhanced Predictive Zonal Search (EPZS)
UMHexDSR = 1 # Use Search Range Prediction. Only for UMHexagonS method
# (0:disable, 1:enabled/default)
UMHexScale = 3 # Use Scale_factor for different image sizes. Only for UMHexagonS method
# (0:disable, 3:/default)
# Increasing value can speed up Motion Search.
EPZSPattern = 2 # Select EPZS primary refinement pattern.
# (0: small diamond, 1: square, 2: extended diamond/default,
# 3: large diamond, 4: SBP Large Diamond,
# 5: PMVFAST )
EPZSDualRefinement = 3 # Enables secondary refinement pattern.
# (0:disabled, 1: small diamond, 2: square,
# 3: extended diamond/default, 4: large diamond,
# 5: SBP Large Diamond, 6: PMVFAST )
EPZSFixedPredictors = 2 # Enables Window based predictors
# (0:disabled, 1: P only, 2: P and B/default)
EPZSTemporal = 1 # Enables temporal predictors
# (0: disabled, 1: enabled/default)
EPZSSpatialMem = 1 # Enables spatial memory predictors
# (0: disabled, 1: enabled/default)
EPZSBlockType = 1 # Enables block type Predictors
# (0: disabled, 1: enabled/default)
EPZSMinThresScale = 0 # Scaler for EPZS minimum threshold (0 default).
# Increasing value can speed up encoding.
EPZSMedThresScale = 1 # Scaler for EPZS median threshold (1 default).
# Increasing value can speed up encoding.
EPZSMaxThresScale = 1 # Scaler for EPZS maximum threshold (1 default).
# Increasing value can speed up encoding.
EPZSSubPelME = 1 # EPZS Subpel ME consideration
EPZSSubPelMEBiPred = 1 # EPZS Subpel ME consideration for BiPred partitions
EPZSSubPelThresScale = 2 # EPZS Subpel ME Threshold scaler
EPZSSubPelGrid = 1 # Perform EPZS using a subpixel grid
########################################################################################
# SEI Parameters
########################################################################################
ToneMappingSEIPresentFlag = 0 # Enable Tone mapping SEI (0 Not present, 1 Present)
ToneMappingFile = "ToneMapping.cfg"
GenerateSEIMessage = 0 # Generate an SEI Text Message
SEIMessageText = "H.264/AVC Encoder" # Text SEI Message
UseMVLimits = 0 # Use MV Limits
SetMVXLimit = 512 # Horizontal MV Limit (in integer units)
SetMVYLimit = 512 # Vertical MV Limit (in integer units)
########################################################################################
# VUI Parameters
########################################################################################
# the variables below do not affect encoding and decoding
# (many are dummy variables but others can be useful when supported by the decoder)
EnableVUISupport = 0 # Enable VUI Parameters
# display parameters
VUI_aspect_ratio_info_present_flag = 0
VUI_aspect_ratio_idc = 1
VUI_sar_width = 0
VUI_sar_height = 0
VUI_overscan_info_present_flag = 0
VUI_overscan_appropriate_flag = 0
VUI_video_signal_type_present_flag = 0
VUI_video_format = 5
VUI_video_full_range_flag = 0
VUI_colour_description_present_flag = 0
VUI_colour_primaries = 2
VUI_transfer_characteristics = 2
VUI_matrix_coefficients = 2
VUI_chroma_location_info_present_flag = 0
VUI_chroma_sample_loc_type_top_field = 0
VUI_chroma_sample_loc_type_bottom_field = 0
VUI_timing_info_present_flag = 0
VUI_num_units_in_tick = 1000
VUI_time_scale = 60000
VUI_fixed_frame_rate_flag = 0
# nal hrd parameters
VUI_nal_hrd_parameters_present_flag = 0
VUI_nal_cpb_cnt_minus1 = 0
VUI_nal_bit_rate_scale = 0
VUI_nal_cpb_size_scale = 0
VUI_nal_bit_rate_value_minus1 = 0
VUI_nal_cpb_size_value_minus1 = 0
VUI_nal_vbr_cbr_flag = 0
VUI_nal_initial_cpb_removal_delay_length_minus1 = 23
VUI_nal_cpb_removal_delay_length_minus1 = 23
VUI_nal_dpb_output_delay_length_minus1 = 23
VUI_nal_time_offset_length = 24
# vlc hrd parameters
VUI_vcl_hrd_parameters_present_flag = 0
VUI_vcl_cpb_cnt_minus1 = 0
VUI_vcl_bit_rate_scale = 0
VUI_vcl_cpb_size_scale = 0
VUI_vcl_bit_rate_value_minus1 = 0
VUI_vcl_cpb_size_value_minus1 = 0
VUI_vcl_vbr_cbr_flag = 0
VUI_vcl_initial_cpb_removal_delay_length_minus1 = 23
VUI_vcl_cpb_removal_delay_length_minus1 = 23
VUI_vcl_dpb_output_delay_length_minus1 = 23
VUI_vcl_time_offset_length = 24
VUI_low_delay_hrd_flag = 0
# other parameters (i.e. bitsream restrictions)
VUI_pic_struct_present_flag = 0
VUI_bitstream_restriction_flag = 0
VUI_motion_vectors_over_pic_boundaries_flag = 1
VUI_max_bytes_per_pic_denom = 0
VUI_max_bits_per_mb_denom = 0
VUI_log2_max_mv_length_vertical = 16
VUI_log2_max_mv_length_horizontal = 16
VUI_num_reorder_frames = 16
VUI_max_dec_frame_buffering = 16
encoder.cfg (52,857 bytes)
# New Input File Format is as follows
# <ParameterName> = <ParameterValue> # Comment
#
# See configfile.h for a list of supported ParameterNames
#
# For bug reporting and known issues see:
# https://ipbt.hhi.fraunhofer.de
##########################################################################################
# Files
##########################################################################################
InputFile = "foreman_part_qcif.yuv" # Input sequence
InputHeaderLength = 0 # If the inputfile has a header, state it's length in byte here
StartFrame = 0 # Start frame for encoding. (0-N)
FramesToBeEncoded = 3 # Number of frames to be coded
FrameRate = 30.0 # Frame Rate per second (0.1-100.0)
Enable32Pulldown = 0 # Enable 'hard' 3:2 pulldown (modifying the inpur data)
# 0 = disabled
# 1 = A, B, Bt|Cb, Ct|Db, D
# 2 = A, B, C, Ct|Db, D
SEIVUI32Pulldown = 0 # Enable 3:2 pulldown through VUI and SEI metadata signaling. Five methods are supported:
# 0 = disabled
# 1 = A, Bt|Bb, Bt|Cb, Ct|Cb, D
# 2 = A, B, C, C, D
# 3 = At|Ab, Bt|Bb, Bt|Cb, Ct|Cb, Dt|Db
# 4 = A, Bt|Bb, Bt|Cb, Ct|Db, Dt|Db
# 5 = At|Ab, Bt|Bb, Bt|Cb, Ct|Db, Dt|Db
SourceWidth = 176 # Source frame width
SourceHeight = 144 # Source frame height
SourceResize = 0 # Resize source size for output
OutputWidth = 176 # Output frame width
OutputHeight = 144 # Output frame height
ProcessInput = 0 # Filter Input Sequence
Interleaved = 0 # 0: Planar input, 1: Packed input
PixelFormat = 0 # Pixel Format for 422 packed inputs
# 0: UYVY
# 1: YUY2/YUYV
# 2: YVYU
# 3: BGR (Unsupported)
# 4: V210 (Video Clarity)
StandardRange = 0 # 0: Standard range 1: Full range (RGB input)
VideoCode = 1 # Video codes for RGB ==> YUV conversions
# 0 = NULL,
# 1 = ITU_REC709,
# 2 = CCIR_601,
# 3 = FCC,
# 4 = ITU_REC624BG,
# 5 = SMPTE_170M,
# 6 = SMPTE_240M,
# 7 = SMPTE_260M,
# 8 = ITU_REC709_EXACT
TraceFile = "trace_enc.txt" # Trace file
ReconFile = "test_rec.yuv" # Reconstruction YUV file
OutputFile = "test.264" # Bitstream
StatsFile = "stats.dat" # Coding statistics file
NumberOfViews = 1 # Number of views to encode (1=1 view, 2=2 views)
View1ConfigFile = "encoder_view1.cfg" # Config file name for second view
##########################################################################################
# Encoder Control
##########################################################################################
Grayscale = 0 # Encode in grayscale (Currently only works for 8 bit YUV 420 input)
ProfileIDC = 100 # Profile IDC (66=baseline, 77=main, 88=extended; FREXT Profiles: 100=High, 110=High 10, 122=High 4:2:2, 244=High 4:4:4, 44=CAVLC 4:4:4 Intra, 118=Multiview High Profile, 128=Stereo High Profile)
IntraProfile = 0 # Activate Intra Profile for FRExt (0: false, 1: true)
# (e.g. ProfileIDC=110, IntraProfile=1 => High 10 Intra Profile)
LevelIDC = 40 # Level IDC (e.g. 20 = level 2.0)
IntraPeriod = 0 # Period of I-pictures (0=only first)
IDRPeriod = 0 # Period of IDR pictures (0=only first)
AdaptiveIntraPeriod = 1 # Adaptive intra period
AdaptiveIDRPeriod = 0 # Adaptive IDR period
IntraDelay = 0 # Intra (IDR) picture delay (i.e. coding structure of PPIPPP... )
EnableIDRGOP = 0 # Support for IDR closed GOPs (0: disabled, 1: enabled)
EnableOpenGOP = 0 # Support for open GOPs (0: disabled, 1: enabled)
QPISlice = 28 # Quant. param for I Slices (0-51)
QPPSlice = 28 # Quant. param for P Slices (0-51)
FrameSkip = 0 # Number of frames to be skipped in input (e.g 2 will code every third frame).
# Note that this now excludes intermediate (i.e. B) coded pictures
ChromaQPOffset = 0 # Chroma QP offset (-51..51)
DisableSubpelME = 0 # Disable Subpixel Motion Estimation (0=off/default, 1=on)
SearchRange = 32 # Max search range
MESoftenSSEMetric = 0 # soften lambda criterion for SSE ME
MEDistortionFPel = 0 # Select error metric for Full-Pel ME (0: SAD, 1: SSE, 2: Hadamard SAD)
MEDistortionHPel = 2 # Select error metric for Half-Pel ME (0: SAD, 1: SSE, 2: Hadamard SAD)
MEDistortionQPel = 2 # Select error metric for Quarter-Pel ME (0: SAD, 1: SSE, 2: Hadamard SAD)
MDDistortion = 2 # Select error metric for Mode Decision (0: SAD, 1: SSE, 2: Hadamard SAD)
SkipDeBlockNonRef = 0 # Skip Deblocking (regardless of DFParametersFlag) for non-reference frames (0: off, 1: on)
OnTheFlyFractMCP = 0 # Perform on-the-fly fractional pixel interpolation for Motion Compensation and Motion Estimation
# 0: Disable, interpolate & store all positions
# 1: Store full pel & interpolated 1/2 pel positions; 1/4 pel positions interpolate on-the-fly
# 2: Store only full pell positions; 1/2 & 1/4 pel positions interpolate on-the-fly
ChromaMCBuffer = 1 # Calculate Color component interpolated values in advance and store them.
# Provides a trade-off between memory and computational complexity
# (0: disabled/default, 1: enabled)
ChromaMEEnable = 0 # Take into account Color component information during ME
# (0: only first component/default,
# 1: All Color components - Integer refinement only
# 2: All Color components - All refinements)
ChromaMEWeight = 0 # Weighting for chroma components. This parameter should have a relationship with color format.
NumberReferenceFrames = 5 # Number of previous frames used for inter motion search (0-16)
PList0References = 0 # P slice List 0 reference override (0 disable, N <= NumberReferenceFrames)
Log2MaxFNumMinus4 = 0 # Sets log2_max_frame_num_minus4 (-1 : based on FramesToBeEncoded/Auto, >=0 : Log2MaxFNumMinus4)
Log2MaxPOCLsbMinus4 = -1 # Sets log2_max_pic_order_cnt_lsb_minus4 (-1 : Auto, >=0 : Log2MaxPOCLsbMinus4)
GenerateMultiplePPS = 1 # Transmit multiple parameter sets. Currently parameters basically enable all WP modes (0: diabled, 1: enabled)
SendAUD = 0 # Send Access Delimiter Unit NALU (for every access unit)
ResendSPS = 2 # Resend SPS (0: disabled, 1: all Intra pictures, 2: only for IDR, 3: for IDR and OpenGOP I)
ResendPPS = 0 # Resend PPS (with pic_parameter_set_id 0) for every coded Frame/Field pair (0: disabled, 1: enabled)
MbLineIntraUpdate = 0 # Error robustness(extra intra macro block updates)(0=off, N: One GOB every N frames are intra coded)
RandomIntraMBRefresh = 0 # Forced intra MBs per picture
##########################################################################################
# PSlice Mode types
##########################################################################################
PSliceSkip = 1 # P-Slice Skip mode consideration (0=disable, 1=enable)
PSliceSearch16x16 = 1 # P-Slice Inter block search 16x16 (0=disable, 1=enable)
PSliceSearch16x8 = 1 # P-Slice Inter block search 16x8 (0=disable, 1=enable)
PSliceSearch8x16 = 1 # P-Slice Inter block search 8x16 (0=disable, 1=enable)
PSliceSearch8x8 = 1 # P-Slice Inter block search 8x8 (0=disable, 1=enable)
PSliceSearch8x4 = 1 # P-Slice Inter block search 8x4 (0=disable, 1=enable)
PSliceSearch4x8 = 1 # P-Slice Inter block search 4x8 (0=disable, 1=enable)
PSliceSearch4x4 = 1 # P-Slice Inter block search 4x4 (0=disable, 1=enable)
##########################################################################################
# BSlice Mode types
##########################################################################################
BSliceDirect = 1 # B-Slice Skip mode consideration (0=disable, 1=enable)
BSliceSearch16x16 = 1 # B-Slice Inter block search 16x16 (0=disable, 1=enable)
BSliceSearch16x8 = 1 # B-Slice Inter block search 16x8 (0=disable, 1=enable)
BSliceSearch8x16 = 1 # B-Slice Inter block search 8x16 (0=disable, 1=enable)
BSliceSearch8x8 = 1 # B-Slice Inter block search 8x8 (0=disable, 1=enable)
BSliceSearch8x4 = 1 # B-Slice Inter block search 8x4 (0=disable, 1=enable)
BSliceSearch4x8 = 1 # B-Slice Inter block search 4x8 (0=disable, 1=enable)
BSliceSearch4x4 = 1 # B-Slice Inter block search 4x4 (0=disable, 1=enable)
BiPredSearch16x16 = 1 # B-Slice Bi-prediction block search 16x16 (0=disable, 1=enable)
BiPredSearch16x8 = 1 # B-Slice Bi-prediction block search 16x8 (0=disable, 1=enable)
BiPredSearch8x16 = 1 # B-Slice Bi-prediction block search 8x16 (0=disable, 1=enable)
BiPredSearch8x8 = 0 # B-Slice Bi-prediction block search 8x8 (0=disable, 1=enable)
DisableIntra4x4 = 0 # Disable Intra 4x4 modes
DisableIntra16x16 = 0 # Disable Intra 16x16 modes
DisableIntraInInter = 0 # Disable Intra modes for inter slices
IntraDisableInterOnly = 0 # Apply Disabling Intra conditions only to Inter Slices (0:disable/default,1: enable)
Intra4x4ParDisable = 0 # Disable Vertical & Horizontal 4x4
Intra4x4DiagDisable = 0 # Disable Diagonal 45degree 4x4
Intra4x4DirDisable = 0 # Disable Other Diagonal 4x4
Intra16x16ParDisable = 0 # Disable Vertical & Horizontal 16x16
Intra16x16PlaneDisable = 0 # Disable Planar 16x16
ChromaIntraDisable = 0 # Disable Intra Chroma modes other than DC
EnableIPCM = 1 # Enable IPCM macroblock mode
DisposableP = 0 # Enable Disposable P slices in the primary layer (0: disable/default, 1: enable)
DispPQPOffset = 0 # Quantizer offset for disposable P slices (0: default)
PreferDispOrder = 1 # Prefer display order when building the prediction structure as opposed to coding order (affects intra and IDR periodic insertion, among others)
PreferPowerOfTwo = 0 # Prefer prediction structures that have lengths expressed as powers of two
FrmStructBufferLength = 16 # Length of the frame structure unit buffer; it can be overriden for certain cases
ChangeQPFrame = 0 # Frame in display order from which to apply the Change QP offsets
ChangeQPI = 0 # Change QP offset value for I_SLICE
ChangeQPP = 0 # Change QP offset value for P_SLICE
ChangeQPB = 0 # Change QP offset value for B_SLICE
ChangeQPSI = 0 # Change QP offset value for SI_SLICE
ChangeQPSP = 0 # Change QP offset value for SP_SLICE
##########################################################################################
# B Slices
##########################################################################################
NumberBFrames = 7 # Number of B coded frames inserted (0=not used)
PReplaceBSlice = 0 # Replace B-coded slices with P-coded slices when NumberBFrames>0
QPBSlice = 30 # Quant. param for B slices (0-51)
BRefPicQPOffset = -1 # Quantization offset for reference B coded pictures (-51..51)
DirectModeType = 1 # Direct Mode Type (0:Temporal 1:Spatial)
DirectInferenceFlag = 1 # Direct Inference Flag (0: Disable 1: Enable)
BList0References = 0 # B slice List 0 reference override (0 disable, N <= NumberReferenceFrames)
BList1References = 1 # B slice List 1 reference override (0 disable, N <= NumberReferenceFrames)
# 1 List1 reference is usually recommended for normal GOP Structures.
# A larger value is usually more appropriate if a more flexible
# structure is used (i.e. using HierarchicalCoding)
BReferencePictures = 0 # Referenced B coded pictures (0=off, 1=B references for secondary layer, 2=B references for primary layer)
HierarchicalCoding = 3 # B hierarchical coding (0= off, 1= 2 layers, 2= 2 full hierarchy, 3 = explicit)
HierarchyLevelQPEnable = 1 # Adjust QP based on hierarchy level (in increments of 1). Overrides BRefPicQPOffset behavior.(0=off, 1=on)
ExplicitHierarchyFormat = "b3r0b1r1b0e2b2e2b5r1b4e2b6e2" # Explicit Enhancement GOP. Format is {FrameDisplay_orderReferenceQP}.
# Valid values for reference type is r:reference, e:non reference.
ExplicitSeqCoding = 0 # Enable support for explicit sequence coding
ExplicitSeqFile = "explicit_seq.cfg"
LowDelay = 0 # Apply HierarchicalCoding without delay (i.e., encode in the captured/display order)
ReferenceReorder = 1 # Reorder References according to Poc distance for HierarchicalCoding (0=off, 1=enable, 2=use when LowDelay is set)
UseDistortionReorder = 0 # Enable Distortion based reordering, when ReferenceReorder is set to 1
PocMemoryManagement = 1 # Memory management based on Poc Distances for HierarchicalCoding (0=off, 1=on, 2=use when LowDelay is set)
SetFirstAsLongTerm = 0 # Set first frame as long term
BiPredMotionEstimation = 1 # Enable Bipredictive based Motion Estimation (0:disabled, 1:enabled)
BiPredMERefinements = 3 # Bipredictive ME extra refinements (0: single, N: N extra refinements (1 default)
BiPredMESearchRange = 16 # Bipredictive ME Search range (8 default). Note that range is halved for every extra refinement.
BiPredMESubPel = 2 # Bipredictive ME Subpixel Consideration (0: disabled, 1: single level, 2: dual level)
##########################################################################################
# HM like coding structures
##########################################################################################
BLevel0MoreRef = 0 # 0: Use the same number of reference pictures as the other B pictures
# 1: Use more reference frame pictures for B pictures at level 0
BIdenticalList = 0 # 0: not used; 1: used for B pictures at level 0; 2: used for all B pictures
# 1 and 2 need to set ReferenceReorder to 1
CRA = 0 # 0: do not use CRA like random access support; 1 use CRA like random access support
# only used for random access cases, LowDelay != 1
HM50RefStructure = 0 # 0: do not use HM-5.0 like referencing structure; 1 use HM-5.0 like referencing structure for random access
LDRefSetting = 0 # 0: use nearest pictures as reference frames
# 1: use one nearest + POC%4==0 pictures as reference frames, as JCTVC-F701
# Only low delay is supported, please do not use it for a different coding structure
##########################################################################################
# SP Frames
##########################################################################################
SPPicturePeriodicity = 0 # SP-Picture Periodicity (0=not used)
SPSwitchPeriod = 0 # Switch period (in terms of switching SP/SI frames) between bitstream 1 and bitstream 2
QPSPSlice = 36 # Quant. param of SP-Slices for Prediction Error (0-51)
QPSISlice = 36 # Quant. param of SI-Slices for Prediction Error (0-51)
QPSP2Slice = 35 # Quant. param of SP/SI-Slices for Predicted Blocks (0-51)
SI_FRAMES = 0 # SI frame encoding flag (0=not used, 1=used)
SP_output = 0 # Controls whether coefficients will be output to encode switching SP frames (0=no, 1=yes)
SP_output_name = "low_quality.dat" # Filename for SP output coefficients
SP2_FRAMES = 0 # switching SP frame encoding flag (0=not used, 1=used)
SP2_input_name1 = "high_quality.dat" # Filename for the first swithed bitstream coefficients
SP2_input_name2 = "low_quality.dat" # Filename for the second switched bitstream coefficients
##########################################################################################
# Output Control, NALs
##########################################################################################
SymbolMode = 1 # Symbol mode (Entropy coding method: 0=UVLC, 1=CABAC)
OutFileMode = 0 # Output file mode, 0:Annex B, 1:RTP
PartitionMode = 0 # Partition Mode, 0: no DP, 1: 3 Partitions per Slice
##########################################################################################
# CABAC context initialization
##########################################################################################
ContextInitMethod = 1 # Context init (0: fixed, 1: adaptive)
FixedModelNumber = 0 # model number for fixed decision for inter slices ( 0, 1, or 2 )
##########################################################################################
# Interlace Handling
#########################################################################################
PicInterlace = 0 # Picture AFF (0: frame coding, 1: field coding, 2:adaptive frame/field coding)
MbInterlace = 0 # Macroblock AFF (0: frame coding, 1: field coding, 2:adaptive frame/field coding, 3: frame MB-only AFF)
IntraBottom = 0 # Force Intra Bottom at GOP Period
##########################################################################################
# Weighted Prediction
#########################################################################################
WeightedPrediction = 0 # P picture Weighted Prediction (0=off, 1=explicit mode)
WeightedBiprediction = 0 # B picture Weighted Prediciton (0=off, 1=explicit mode, 2=implicit mode)
ChromaWeightSupport = 1 # Enable consideration of weights for Chroma components
UseWeightedReferenceME = 1 # Use weighted reference for ME (0=off, 1=on)
WPMethod = 1 # WP method (0: DC based, 1: LMS based)
WPIterMC = 0 # Iterative Motion compensated based weighted prediction method
EnhancedBWeightSupport = 0 # Enhanced B Weight support (needs revisit if we wish to merge with WPMethod)
WPMCPrecision = 0 # Improved Motion Compensation Precision using WP based methods.
# Clones WP references with slightly modified rounding offsets (Requires RDPictureDecision and GenerateMultiplePPS) :
# 0: disabled (default)
# 1: Up to one additional coding pass. Ref0 is 0, ref1 is 0 with a -1 offset
# 2: Up to two additional coding passes. (1) Ref0 is 0, ref1 is 0 with a -1 offset, (1) Ref0 is 0 with a -1 offset, ref1 is 0
WPMCPrecFullRef = 0 # Increases the number of references in the reference picture lists to account
# for the lost reference slot when reordering is used during a coding pass in WPMCPrecision for reference replication.
# The number of references in non-reordered passes stays unchanged
WPMCPrecBSlice = 1 # 2: Apply rounding on every B slice. This efectively disables the evaluation of alternative QPs during RDPictureDecision.
# 1: Disable rounding for non-reference B slices. Non-reference B slices are evaluated for alternative QPs during RDPictureDecision.
# 0: Disable rounding for B slices.
##########################################################################################
# Picture based Multi-pass encoding
#########################################################################################
RDPictureDecision = 0 # Perform multiple pass coding and make RD optimal decision among them
RDPSliceBTest = 0 # Perform Slice level RD decision between P and B slices.
RDPSliceITest = 1 # Perform Slice level RD decision between P and I slices. Default value is 1 (enabled).
RDPictureMaxPassISlice = 1 # Max number of coding passes for I slices, valid values [1,3], default is 1
RDPictureMaxPassPSlice = 2 # Max number of coding passes for P slices, valid values [1,6], default is 2
RDPictureMaxPassBSlice = 3 # Max number of coding passes for B slices, valid values [1,6], default is 3
RDPictureFrameQPPSlice = 0 # Perform additional frame level QP check (QP+/-1) for P slices, 0: disabled (default), 1: enabled
RDPictureFrameQPBSlice = 0 # Perform additional frame level QP check (QP+/-1) for B slices, 0: disabled, 1: enabled (default)
RDPictureDeblocking = 0 # Perform another coding pass to check non-deblocked picture, 0: disabled (default), 1: enabled
RDPictureDirectMode = 0 # Perform another coding pass to check the alternative direct mode for B slices, , 0: disabled (default), 1: enabled
##########################################################################################
# Deblocking filter parameters
##########################################################################################
DFParametersFlag = 0 # Configure deblocking filter (0=parameters below ignored, 1=parameters sent)
# Note that for pictures with multiple slice types,
# only the type of the first slice will be considered.
DFDisableRefISlice = 0 # Disable deblocking filter in reference I coded pictures (0=Filter, 1=No Filter).
DFAlphaRefISlice = 0 # Reference I coded pictures Alpha offset div. 2, {-6, -5, ... 0, +1, .. +6}
DFBetaRefISlice = 0 # Reference I coded pictures Beta offset div. 2, {-6, -5, ... 0, +1, .. +6}
DFDisableNRefISlice = 0 # Disable deblocking filter in non reference I coded pictures (0=Filter, 1=No Filter).
DFAlphaNRefISlice = 0 # Non Reference I coded pictures Alpha offset div. 2, {-6, -5, ... 0, +1, .. +6}
DFBetaNRefISlice = 0 # Non Reference I coded pictures Beta offset div. 2, {-6, -5, ... 0, +1, .. +6}
DFDisableRefPSlice = 0 # Disable deblocking filter in reference P coded pictures (0=Filter, 1=No Filter).
DFAlphaRefPSlice = 0 # Reference P coded pictures Alpha offset div. 2, {-6, -5, ... 0, +1, .. +6}
DFBetaRefPSlice = 0 # Reference P coded pictures Beta offset div. 2, {-6, -5, ... 0, +1, .. +6}
DFDisableNRefPSlice = 0 # Disable deblocking filter in non reference P coded pictures (0=Filter, 1=No Filter).
DFAlphaNRefPSlice = 0 # Non Reference P coded pictures Alpha offset div. 2, {-6, -5, ... 0, +1, .. +6}
DFBetaNRefPSlice = 0 # Non Reference P coded pictures Beta offset div. 2, {-6, -5, ... 0, +1, .. +6}
DFDisableRefBSlice = 0 # Disable deblocking filter in reference B coded pictures (0=Filter, 1=No Filter).
DFAlphaRefBSlice = 0 # Reference B coded pictures Alpha offset div. 2, {-6, -5, ... 0, +1, .. +6}
DFBetaRefBSlice = 0 # Reference B coded pictures Beta offset div. 2, {-6, -5, ... 0, +1, .. +6}
DFDisableNRefBSlice = 0 # Disable deblocking filter in non reference B coded pictures (0=Filter, 1=No Filter).
DFAlphaNRefBSlice = 0 # Non Reference B coded pictures Alpha offset div. 2, {-6, -5, ... 0, +1, .. +6}
DFBetaNRefBSlice = 0 # Non Reference B coded pictures Beta offset div. 2, {-6, -5, ... 0, +1, .. +6}
##########################################################################################
# Error Resilience / Slices
##########################################################################################
SliceMode = 0 # Slice mode (0=off 1=fixed #mb in slice 2=fixed #bytes in slice 3=use callback)
SliceArgument = 50 # Slice argument (Arguments to modes 1 and 2 above)
num_slice_groups_minus1 = 0 # Number of Slice Groups Minus 1, 0 == no FMO, 1 == two slice groups, etc.
slice_group_map_type = 0 # 0: Interleave, 1: Dispersed, 2: Foreground with left-over,
# 3: Box-out, 4: Raster Scan 5: Wipe
# 6: Explicit, slice_group_id read from SliceGroupConfigFileName
slice_group_change_direction_flag = 0 # 0: box-out clockwise, raster scan or wipe right,
# 1: box-out counter clockwise, reverse raster scan or wipe left
slice_group_change_rate_minus1 = 85 #
SliceGroupConfigFileName = "sg0conf.cfg" # Used for slice_group_map_type 0, 2, 6
UseRedundantPicture = 0 # 0: not used, 1: enabled
NumRedundantHierarchy = 1 # 0-4
PrimaryGOPLength = 10 # GOP length for redundant allocation (1-16)
# NumberReferenceFrames must be no less than PrimaryGOPLength when redundant slice enabled
NumRefPrimary = 1 # Actually used number of references for primary slices (1-16)
##########################################################################################
# Search Range Restriction / RD Optimization
##########################################################################################
RestrictSearchRange = 2 # restriction for (0: blocks and ref, 1: ref, 2: no restrictions)
RDOptimization = 1 # rd-optimized mode decision
# 0: RD-off (Low complexity mode)
# 1: RD-on (High complexity mode)
# 2: RD-on (Fast high complexity mode - not work in FREX Profiles)
# 3: with losses
# 4: RD-on (High complexity mode) with negative skip bias
I16RDOpt = 1 # perform rd-optimized mode decision for Intra 16x16 MB
# 0: SAD-based mode decision for Intra 16x16 MB
# 1: RD-based mode decision for Intra 16x16 MB
SubMBCodingState = 1 # submacroblock coding state
# 0: lowest complexity, do not store or reset coding state during sub-MB mode decision
# 1: medium complexity, reset to master coding state (for current mode) during sub-MB mode decision
# 2: highest complexity, store and reset coding state during sub-MB mode decision
DistortionSSIM = 0 # Compute SSIM distortion. (0: disabled/default, 1: enabled)
DistortionMS_SSIM = 0 # Compute Multiscale SSIM distortion. (0: disabled/default, 1: enabled)
SSIMOverlapSize = 8 # Overlap size to calculate SSIM distortion (1: pixel by pixel, 8: no overlap)
DistortionYUVtoRGB = 0 # Calculate distortion in RGB domain after conversion from YCbCr (0:off, 1:on)
CtxAdptLagrangeMult = 0 # Context Adaptive Lagrange Multiplier
# 0: disabled (default)
# 1: enabled (works best when RDOptimization=0)
FastCrIntraDecision = 1 # Fast Chroma intra mode decision (0:off, 1:on)
DisableThresholding = 1 # Disable Thresholding of Transform Coefficients (0:off, 1:on)
DisableBSkipRDO = 0 # Disable B Skip Mode consideration from RDO Mode decision (0:off, 1:on)
BiasSkipRDO = 0 # Negative Bias for Skip/DirectSkip modes (0: off, 1: on)
ForceTrueRateRDO = 0 # Force true rate (even zero values) during RDO process
SkipIntraInInterSlices = 0 # Skips Intra mode checking in inter slices if certain mode decisions are satisfied (0: off, 1: on)
PSliceSkipDecisionMethod = 0 # Enable/Control consideration of Skip mode in P slices based on the characteristics of inter modes.
# Used in combination with RDOptimization = 4.
# 0: Enable always
# 1: Enable only when best mode is 16x16 with skip motion vectors and no residual (natural mode)
# 2: Enable only when best mode is 16x16 with skip motion vectors
# 3: Enable only when best mode is 16x16 and mvs are close to skip motion vectors (+-8)
# 4: Enable only when best mode is inter with no residual
# 5: Enable only when best mode is inter with no residual or 16x16 with mvs close to skip (+-8)
WeightY = 1 # Luma weight for RDO
WeightCb = 1 # Cb weight for RDO
WeightCr = 1 # Cr weight for RDO
##########################################################################################
# Explicit Lambda Usage
##########################################################################################
UseExplicitLambdaParams = 0 # Use explicit lambda scaling parameters (0:disabled, 1:enable lambda weight, 2: use explicit lambda value)
DisableDistanceLambdaScale = 0 # Disable Distance based lambda scaling
UpdateLambdaChromaME = 0 # Update lambda given Chroma ME consideration
FixedLambdaISlice = 0.1 # Fixed Lambda value for I slices
FixedLambdaPSlice = 0.1 # Fixed Lambda value for P slices
FixedLambdaBSlice = 0.1 # Fixed Lambda value for B slices
FixedLambdaRefBSlice = 0.1 # Fixed Lambda value for Referenced B slices
FixedLambdaSPSlice = 0.1 # Fixed Lambda value for SP slices
FixedLambdaSISlice = 0.1 # Fixed Lambda value for SI slices
LambdaWeightISlice = 0.65 # scaling param for I slices. This will be used as a multiplier i.e. lambda=LambdaWeightISlice * 2^((QP-12)/3)
LambdaWeightPSlice = 0.68 # scaling param for P slices. This will be used as a multiplier i.e. lambda=LambdaWeightPSlice * 2^((QP-12)/3)
LambdaWeightBSlice = 0.68 # scaling param for B slices. This will be used as a multiplier i.e. lambda=LambdaWeightBSlice * 2^((QP-12)/3)
LambdaWeightRefBSlice = 0.68 # scaling param for Referenced B slices. This will be used as a multiplier i.e. lambda=LambdaWeightRefBSlice * 2^((QP-12)/3)
LambdaWeightSPSlice = 0.68 # scaling param for SP slices. This will be used as a multiplier i.e. lambda=LambdaWeightSPSlice * 2^((QP-12)/3)
LambdaWeightSISlice = 0.65 # scaling param for SI slices. This will be used as a multiplier i.e. lambda=LambdaWeightSISlice * 2^((QP-12)/3)
LossRateA = 5 # expected packet loss rate of the channel for the first partition, only valid if RDOptimization = 3
LossRateB = 0 # expected packet loss rate of the channel for the second partition, only valid if RDOptimization = 3
LossRateC = 0 # expected packet loss rate of the channel for the third partition, only valid if RDOptimization = 3
FirstFrameCorrect = 0 # If 1, the first frame is encoded under the assumption that it is always correctly received.
NumberOfDecoders = 30 # Numbers of decoders used to simulate the channel, only valid if RDOptimization = 3
RestrictRefFrames = 0 # Doesnt allow reference to areas that have been intra updated in a later frame.
##########################################################################################
# Additional Stuff
#########################################################################################
UseConstrainedIntraPred = 0 # If 1, Inter pixels are not used for Intra macroblock prediction.
NumberofLeakyBuckets = 8 # Number of Leaky Bucket values
LeakyBucketRateFile = "leakybucketrate.cfg" # File from which encoder derives rate values
LeakyBucketParamFile = "leakybucketparam.cfg" # File where encoder stores leakybucketparams
NumFramesInELayerSubSeq = 0 # number of frames in the Enhanced Scalability Layer(0: no Enhanced Layer)
SparePictureOption = 0 # (0: no spare picture info, 1: spare picture available)
SparePictureDetectionThr = 6 # Threshold for spare reference pictures detection
SparePicturePercentageThr = 92 # Threshold for the spare macroblock percentage
PicOrderCntType = 0 # (0: POC mode 0, 1: POC mode 1, 2: POC mode 2)
########################################################################################
#Rate control
########################################################################################
RateControlEnable = 0 # 0 Disable, 1 Enable
Bitrate = 45020 # Bitrate(bps)
InitialQP = 0 # Initial Quantization Parameter for the first I frame
# InitialQp depends on two values: Bits Per Picture,
# and the GOP length
BasicUnit = 0 # Number of MBs in the basic unit
# should be a fraction of the total number
# of MBs in a frame ("0" sets a BU equal to a frame)
ChannelType = 0 # type of channel( 1=time varying channel; 0=Constant channel)
RCUpdateMode = 0 # Rate Control type. Modes supported :
# 0 = original JM rate control,
# 1 = rate control that is applied to all frames regardless of the slice type,
# 2 = original plus intelligent QP selection for I and B slices (including Hierarchical),
# 3 = original + hybrid quadratic rate control for I and B slice using bit rate statistics
#
RCISliceBitRatio = 1.0 # target ratio of bits for I-coded pictures compared to P-coded Pictures (for RCUpdateMode=3)
RCBSliceBitRatio0 = 0.5 # target ratio of bits for B-coded pictures compared to P-coded Pictures - temporal level 0 (for RCUpdateMode=3)
RCBSliceBitRatio1 = 0.25 # target ratio of bits for B-coded pictures compared to P-coded Pictures - temporal level 1 (for RCUpdateMode=3)
RCBSliceBitRatio2 = 0.25 # target ratio of bits for B-coded pictures compared to P-coded Pictures - temporal level 2 (for RCUpdateMode=3)
RCBSliceBitRatio3 = 0.25 # target ratio of bits for B-coded pictures compared to P-coded Pictures - temporal level 3 (for RCUpdateMode=3)
RCBSliceBitRatio4 = 0.25 # target ratio of bits for B-coded pictures compared to P-coded Pictures - temporal level 4 (for RCUpdateMode=3)
RCBoverPRatio = 0.45 # ratio of bit rate usage of a B-coded picture over a P-coded picture for the SAME QP (for RCUpdateMode=3)
RCIoverPRatio = 3.80 # ratio of bit rate usage of an I-coded picture over a P-coded picture for the SAME QP (for RCUpdateMode=3)
RCMinQPPSlice = 8 # minimum P Slice QP value for rate control
RCMaxQPPSlice = 42 # maximum P Slice QP value for rate control
RCMinQPBSlice = 8 # minimum B Slice QP value for rate control
RCMaxQPBSlice = 42 # maximum B Slice QP value for rate control
RCMinQPISlice = 8 # minimum I Slice QP value for rate control
RCMaxQPISlice = 42 # maximum I Slice QP value for rate control
RCMinQPSPSlice = 8 # minimum SP Slice QP value for rate control
RCMaxQPSPSlice = 40 # maximum SP Slice QP value for rate control
RCMinQPSISlice = 8 # minimum SI Slice QP value for rate control
RCMaxQPSISlice = 42 # maximum SI Slice QP value for rate control
RCMaxQPChange = 4 # maximum QP change for frames of the base layer
########################################################################################
#Fast Mode Decision
########################################################################################
EarlySkipEnable = 0 # Early skip detection (0: Disable 1: Enable)
SelectiveIntraEnable = 0 # Selective Intra mode decision (0: Disable 1: Enable)
########################################################################################
#FREXT stuff
########################################################################################
YUVFormat = 1 # YUV format (0=4:0:0, 1=4:2:0, 2=4:2:2, 3=4:4:4)
RGBInput = 0 # 1=RGB input, 0=GBR or YUV input
SeparateColourPlane = 0 # 4:4:4 coding: 0=Common mode, 1=Independent mode
SourceBitDepthLuma = 8 # Source Bit Depth for Luma color component (8...14 bits)
SourceBitDepthChroma = 8 # Source Bit Depth for Chroma color components (8...14 bits)
SourceBitDepthRescale = 0 # Rescale bit depth of source for output (0: Disable 1: Enable)
OutputBitDepthLuma = 8 # Output Bit Depth for Luma color component (8...14 bits)
OutputBitDepthChroma = 8 # Output Bit Depth for Chroma color components (8...14 bits)
CbQPOffset = 0 # Chroma QP offset for Cb-part (-51..51)
CrQPOffset = 0 # Chroma QP offset for Cr-part (-51..51)
Transform8x8Mode = 1 # (0: only 4x4 transform, 1: allow using 8x8 transform additionally, 2: only 8x8 transform)
ReportFrameStats = 0 # (0:Disable Frame Statistics 1: Enable)
DisplayEncParams = 0 # (0:Disable Display of Encoder Params 1: Enable)
Verbose = 1 # level of display verboseness
# 0: short, 1: normal (default), 2: detailed, 3: detailed/nvb
SkipGlobalStats = 0 # Disable global stat accumulation (Set to 1 to avoid bipred core dump)
########################################################################################
#Q-Matrix (FREXT)
########################################################################################
QmatrixFile = "q_matrix.cfg"
ScalingMatrixPresentFlag = 0 # Enable Q_Matrix (0 Not present, 1 Present in SPS, 2 Present in PPS, 3 Present in both SPS & PPS)
ScalingListPresentFlag0 = 3 # Intra4x4_Luma (0 Not present, 1 Present in SPS, 2 Present in PPS, 3 Present in both SPS & PPS)
ScalingListPresentFlag1 = 3 # Intra4x4_ChromaU (0 Not present, 1 Present in SPS, 2 Present in PPS, 3 Present in both SPS & PPS)
ScalingListPresentFlag2 = 3 # Intra4x4_chromaV (0 Not present, 1 Present in SPS, 2 Present in PPS, 3 Present in both SPS & PPS)
ScalingListPresentFlag3 = 3 # Inter4x4_Luma (0 Not present, 1 Present in SPS, 2 Present in PPS, 3 Present in both SPS & PPS)
ScalingListPresentFlag4 = 3 # Inter4x4_ChromaU (0 Not present, 1 Present in SPS, 2 Present in PPS, 3 Present in both SPS & PPS)
ScalingListPresentFlag5 = 3 # Inter4x4_ChromaV (0 Not present, 1 Present in SPS, 2 Present in PPS, 3 Present in both SPS & PPS)
ScalingListPresentFlag6 = 3 # Intra8x8_Luma (0 Not present, 1 Present in SPS, 2 Present in PPS, 3 Present in both SPS & PPS)
ScalingListPresentFlag7 = 3 # Inter8x8_Luma (0 Not present, 1 Present in SPS, 2 Present in PPS, 3 Present in both SPS & PPS)
ScalingListPresentFlag8 = 3 # Intra8x8_ChromaU for 4:4:4 (0 Not present, 1 Present in SPS, 2 Present in PPS, 3 Present in both SPS & PPS)
ScalingListPresentFlag9 = 3 # Inter8x8_ChromaU for 4:4:4 (0 Not present, 1 Present in SPS, 2 Present in PPS, 3 Present in both SPS & PPS)
ScalingListPresentFlag10 = 3 # Intra8x8_ChromaV for 4:4:4 (0 Not present, 1 Present in SPS, 2 Present in PPS, 3 Present in both SPS & PPS)
ScalingListPresentFlag11 = 3 # Inter8x8_ChromaV for 4:4:4 (0 Not present, 1 Present in SPS, 2 Present in PPS, 3 Present in both SPS & PPS)
########################################################################################
#Rounding Offset control
########################################################################################
OffsetMatrixPresentFlag = 0 # Enable Explicit Offset Quantization Matrices (0: disable 1: enable)
QOffsetMatrixFile = "q_offset.cfg" # Explicit Quantization Matrices file
OffsetMatrixFlat = 0 # 0: use default initialization offsets (1/3 intra, 1/6 inter)
# 1: offsets initialized to 0.5
# 2: offsets initialized to 0.5 for chroma intra, otherwise uses default values
AdaptiveRounding = 1 # Enable Adaptive Rounding based on JVT-N011 (0: disable, 1: enable)
AdaptRoundingFixed = 0 # Enable Global Adaptive rounding for all qps (0: disable, 1: enable - default/old)
AdaptRndPeriod = 16 # Period in terms of MBs for updating rounding offsets.
# 0 performs update at the picture level. Default is 16. 1 is as in JVT-N011.
AdaptRndChroma = 1 # Enables coefficient rounding adaptation for chroma
AdaptRndWFactorIRef = 8 # Adaptive Rounding Weight for I/SI slices in reference pictures /4096
AdaptRndWFactorPRef = 8 # Adaptive Rounding Weight for P/SP slices in reference pictures /4096
AdaptRndWFactorBRef = 8 # Adaptive Rounding Weight for B slices in reference pictures /4096
AdaptRndWFactorINRef = 8 # Adaptive Rounding Weight for I/SI slices in non reference pictures /4096
AdaptRndWFactorPNRef = 8 # Adaptive Rounding Weight for P/SP slices in non reference pictures /4096
AdaptRndWFactorBNRef = 8 # Adaptive Rounding Weight for B slices in non reference pictures /4096
AdaptRndCrWFactorIRef = 8 # Chroma Adaptive Rounding Weight for I/SI slices in reference pictures /4096
AdaptRndCrWFactorPRef = 8 # Chroma Adaptive Rounding Weight for P/SP slices in reference pictures /4096
AdaptRndCrWFactorBRef = 8 # Chroma Adaptive Rounding Weight for B slices in reference pictures /4096
AdaptRndCrWFactorINRef = 8 # Chroma Adaptive Rounding Weight for I/SI slices in non reference pictures /4096
AdaptRndCrWFactorPNRef = 8 # Chroma Adaptive Rounding Weight for P/SP slices in non reference pictures /4096
AdaptRndCrWFactorBNRef = 8 # Chroma Adaptive Rounding Weight for B slices in non reference pictures /4096
################################################################
# Rate Distortion Optimized Quantization
################################################################
UseRDOQuant = 0 # Use Rate Distortion Optimized Quantization (0=disable, 1=enable)
RDOQ_DC = 1 # Enable Rate Distortion Optimized Quantization for DC components (0=disable, 1=enable)
RDOQ_CR = 1 # Enable Rate Distortion Optimized Quantization for Chroma components (0=disable, 1=enable)
RDOQ_DC_CR = 1 # Enable Rate Distortion Optimized Quantization for Chroma DC components (0=disable, 1=enable)
RDOQ_QP_Num = 5 # 1-9: Number of QP tested in RDO_Q (I/P/B slice)
RDOQ_CP_Mode = 0 # copy Mode from first QP tested
RDOQ_CP_MV = 0 # copy MV from first QP tested
RDOQ_Fast = 0 # Fast RDOQ decision method for multiple QPs
########################################################################################
#Lossless Coding (FREXT)
########################################################################################
LosslessCoding = 0 # Enable lossless coding when qpprime_y is zero (0 Disabled, 1 Enabled)
########################################################################################
#Fast Motion Estimation Control Parameters
########################################################################################
SearchMode = 3 # Motion estimation mode
# -1 = Full Search
# 0 = Fast Full Search (default)
# 1 = UMHexagon Search
# 2 = Simplified UMHexagon Search
# 3 = Enhanced Predictive Zonal Search (EPZS)
UMHexDSR = 1 # Use Search Range Prediction. Only for UMHexagonS method
# (0:disable, 1:enabled/default)
UMHexScale = 3 # Use Scale_factor for different image sizes. Only for UMHexagonS method
# (0:disable, 3:/default)
# Increasing value can speed up Motion Search.
EPZSPattern = 2 # Select EPZS primary refinement pattern.
# (0: small diamond, 1: square, 2: extended diamond/default,
# 3: large diamond, 4: SBP Large Diamond,
# 5: PMVFAST )
EPZSDualRefinement = 3 # Enables secondary refinement pattern.
# (0:disabled, 1: small diamond, 2: square,
# 3: extended diamond/default, 4: large diamond,
# 5: SBP Large Diamond, 6: PMVFAST )
EPZSFixedPredictors = 3 # Enables Window based predictors
# (0:disabled, 1: P only, 2: P and B, 3: Pic Boundary + P and B/default)
EPZSAggressiveWindow = 0 # Use Aggressive Window pattern for EPZS (0: disabled, 1: enabled)
EPZSTemporal = 1 # Enables temporal predictors
# (0: disabled, 1: enabled/default)
EPZSSpatialMem = 1 # Enables spatial memory predictors
# (0: disabled, 1: enabled/default)
EPZSBlockType = 1 # Enables block type Predictors
# (0: disabled, 1: enabled/default)
EPZSMinThresScale = 0 # Scaler for EPZS minimum threshold (0 default).
# Increasing value can speed up encoding.
EPZSMedThresScale = 1 # Scaler for EPZS median threshold (1 default).
# Increasing value can speed up encoding.
EPZSMaxThresScale = 2 # Scaler for EPZS maximum threshold (1 default).
# Increasing value can speed up encoding.
EPZSSubPelME = 1 # EPZS Subpel ME consideration
EPZSSubPelMEBiPred = 1 # EPZS Subpel ME consideration for BiPred partitions
EPZSSubPelThresScale = 1 # EPZS Subpel ME Threshold scaler
EPZSSubPelGrid = 1 # Perform EPZS using a subpixel grid
HMEEnable = 1 # Enable Hierarchical Motion Estimation consideration with EPZS (does not work with other ME Engines)
EPZSUseHMEPredictors = 1 # Use HME motion vectors during EPZS refinement
UseDistortionReorder = 1 # Use Distortion based reordering. If HME is enabled, then HME results are used, otherwise zero motion distortion is computed.
########################################################################################
# SEI Parameters
########################################################################################
ToneMappingSEIPresentFlag = 0 # Enable Tone mapping SEI (0 Not present, 1 Present)
ToneMappingFile = "ToneMapping.cfg"
GenerateSEIMessage = 0 # Generate an SEI Text Message
SEIMessageText = "H.264/AVC Encoder" # Text SEI Message
SEIFPAType = -1 # Set frame packing arrangement type
# -1 = disabled
# 0 = checkerboard
# 1 = columns alternate
# 2 = lines alternate
# 3 = side by side
# 4 = top and bottom
# 5 = frame alternate
# 6 = 2D
# 7 = tile
UseMVLimits = 0 # Use MV Limits
SetMVXLimit = 512 # Horizontal MV Limit (in integer units)
SetMVYLimit = 512 # Vertical MV Limit (in integer units)
########################################################################################
# VUI Parameters
########################################################################################
# the variables below do not affect encoding and decoding
# (many are dummy variables but others can be useful when supported by the decoder)
EnableVUISupport = 0 # Enable VUI Parameters
# display parameters
VUI_aspect_ratio_info_present_flag = 0
VUI_aspect_ratio_idc = 1
VUI_sar_width = 0
VUI_sar_height = 0
VUI_overscan_info_present_flag = 0
VUI_overscan_appropriate_flag = 0
VUI_video_signal_type_present_flag = 0
VUI_video_format = 5
VUI_video_full_range_flag = 0
VUI_colour_description_present_flag = 0
VUI_colour_primaries = 2
VUI_transfer_characteristics = 2
VUI_matrix_coefficients = 2
VUI_chroma_location_info_present_flag = 0
VUI_chroma_sample_loc_type_top_field = 0
VUI_chroma_sample_loc_type_bottom_field = 0
VUI_timing_info_present_flag = 0
VUI_num_units_in_tick = 1000
VUI_time_scale = 60000
VUI_fixed_frame_rate_flag = 0
# nal hrd parameters
VUI_nal_hrd_parameters_present_flag = 0
VUI_nal_cpb_cnt_minus1 = 0
VUI_nal_bit_rate_scale = 0
VUI_nal_cpb_size_scale = 0
VUI_nal_bit_rate_value_minus1 = 0
VUI_nal_cpb_size_value_minus1 = 0
VUI_nal_vbr_cbr_flag = 0
VUI_nal_initial_cpb_removal_delay_length_minus1 = 23
VUI_nal_cpb_removal_delay_length_minus1 = 23
VUI_nal_dpb_output_delay_length_minus1 = 23
VUI_nal_time_offset_length = 24
# vlc hrd parameters
VUI_vcl_hrd_parameters_present_flag = 0
VUI_vcl_cpb_cnt_minus1 = 0
VUI_vcl_bit_rate_scale = 0
VUI_vcl_cpb_size_scale = 0
VUI_vcl_bit_rate_value_minus1 = 0
VUI_vcl_cpb_size_value_minus1 = 0
VUI_vcl_vbr_cbr_flag = 0
VUI_vcl_initial_cpb_removal_delay_length_minus1 = 23
VUI_vcl_cpb_removal_delay_length_minus1 = 23
VUI_vcl_dpb_output_delay_length_minus1 = 23
VUI_vcl_time_offset_length = 24
VUI_low_delay_hrd_flag = 0
# other parameters (i.e. bitsream restrictions)
VUI_pic_struct_present_flag = 0
VUI_bitstream_restriction_flag = 0
VUI_motion_vectors_over_pic_boundaries_flag = 1
VUI_max_bytes_per_pic_denom = 0
VUI_max_bits_per_mb_denom = 0
VUI_log2_max_mv_length_vertical = 16
VUI_log2_max_mv_length_horizontal = 16
VUI_num_reorder_frames = 16
VUI_max_dec_frame_buffering = 16
|
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2021-03-17 13:56 | Florian Maurer | New Issue | |
| 2021-03-17 13:56 | Florian Maurer | File Added: encoder_randomaccess.cfg | |
| 2021-03-17 13:56 | Florian Maurer | File Added: encoder.cfg | |
| 2021-03-17 13:56 | Florian Maurer | File Added: VL_Starcraft_540p60_QP30.bin | |
| 2021-03-17 13:56 | Florian Maurer | File Added: VL_Starcraft_540p60_QP30_POC176.png |
